PPS | Ultra Efficient | Chemical Resistant Pumps

Capacity

250m³/hr

Column Length

<4.5 metres

Head

<40 metres

External Flushing Available

Flexible To Your Design Requirements

Download Our Datasheet

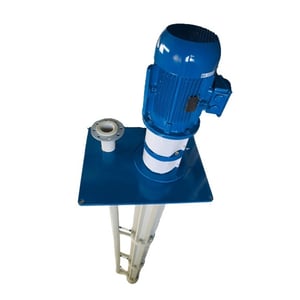

PPS OVERVIEW

The PPS plastic vertical pump range is the number one choice in the industry for efficient, heavy duty and reliable pumps at a competitive price. The PPS ranges are rigid and vibration free, capable of being installed for many years of trouble free service.

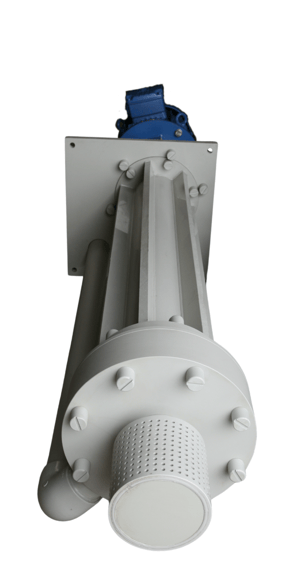

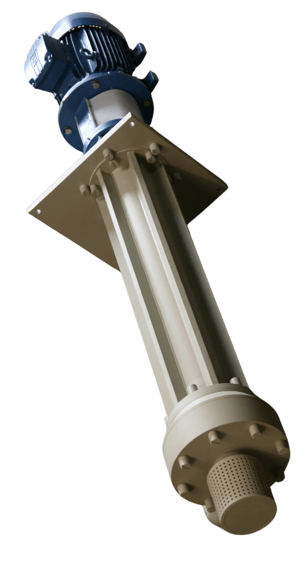

The wetted parts are fully corrosion resistant and machined from solid plastics. The PPS range features suspension systems with integral stiffening bars to prevent longitudinal movement. A feature of the PPS range is the ability to adjust the impeller gap from above the mounting plate, without having to remove the pump from the sump or tank.

The stabilising PTFE and high alumina ceramic bearings are usually product lubricated, however, for liquids, which contain a high degree of solids or abrasives, external flushing lines can easily be fitted.

The impeller can be either semi-open or fully closed depending upon the type of application. Radial back-vanes machined on the impeller ensure a continuous and plentiful flow to lubricate the bottom slide bearing.

THE CREST PUMPS LIFETIME GUARANTEE

No matter how old your pump becomes, in the unlikely scenario that you have a problem, our engineers will be on hand to diagnose the issue and help you get up and running again.

That’s why, with Crest Pumps you’ll never need to worry about unplanned downtime again.

Talk to us now to discuss your chemical pump requirements or book a free site audit to see how much time and money you could save!

Talk To Us

Technical Specification

Model	SUCTION	DISCHARGE	SPEED (rpm)	RATED CAPACITY (m /hr)	RATED HEAD (m)	MAX CAPACITY (m /hr)	MAX HEAD (m)	MOTOR OUTPUT (kW)
PPS 100	1.5”	1.25”	2900	9	8	16	12	1.5
PPS 200	2”	1.5”	2900	15	18	25	23	2.2
PPS 300	2.5”	2”	2900	30	22	44	30	5.5
PPS 400	2.5”	2”	2900	40	30	65	35	7.5
PPS 500	3”	2.5	1450	75	13	125	14	7.5
PPS 125/100/125	125mm	100mm	2900	150	20	250	22	18.5
PPS 125/100/200	125mm	100mm	2900	90	40	150	48	37

Frequently Asked Questions

What is the difference between submersible and immersible pumps?

Submersible pumps are complete units, including the motor, and the whole can be totally submerged whereas immersible pumps are mounted in vertical position with the motor above the liquid and the pump end extended below the liquid level.

How does a vertical immersible pump work?

A vertical immersible pump operates with its pump end submerged in the fluid while the motor remains above the liquid level. The pump uses an impeller to draw fluid up through the pump column and discharge it at the surface. This design prevents motor exposure to harsh fluids, making it ideal for handling corrosive, abrasive, or high-temperature liquids in industries like chemical processing and wastewater treatment.

What Are the Advantages of Using a Vertical Immersible Pump?

Vertical immersible pumps offer several benefits, including space-saving design, as they require a smaller footprint than horizontal pumps. They prevent motor exposure to corrosive or hazardous fluids by keeping the motor above the liquid level. These pumps also provide high efficiency and reliability, with minimal risk

of leaks due to their seal-less or semi-sealed designs. Additionally, they are easy to maintain, as the motor and key components remain accessible without needing to drain the tank or sump
